シューティングチュートリアルをUnity5で(第10回)
10.1 タイトルの表示

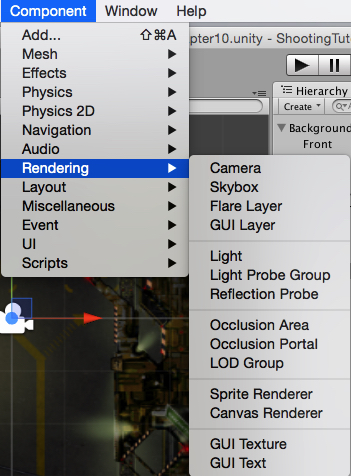

GUITextはGameObjectではなく、Componentになった模様。ゆえにGameObjectからではなくComponent>Rendering>GUI Textで作成する(もしくはInspectorのAdd ComponentからRendering>GUI Text)。
GUI Textコンポーネントは一オブジェクトには複数登録できないので、チュートリアル通りTitleの下に二つのGUI Textコンポーネント、とはいかない。

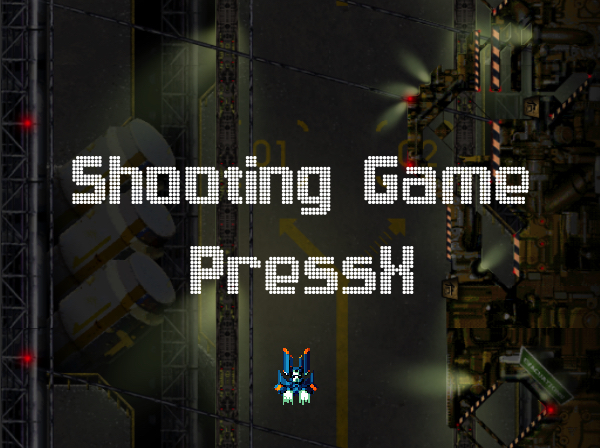

なので一つのGUI Textに二行テキストを書き、AlignmentをCenter(中央揃え)、Line Spacing(改行高さ)を1.5に設定する事でチュートリアル通りの表示になるようにした。
10.2 タイトル -> ゲームスタート ( -> 死んだら ) -> タイトル のマネージャークラスを作る
- 特記事項なし
using UnityEngine; public class Manager : MonoBehaviour { public GameObject player; private GameObject title; void Start () { title = GameObject.Find ("Title"); } void Update () { if (IsPlaying () == false && Input.GetKeyDown (KeyCode.X)) { GameStart (); } } void GameStart() { title.SetActive (false); Instantiate (player, player.transform.position, player.transform.rotation); } public void GameOver() { title.SetActive (true); } public bool IsPlaying() { return title.activeSelf == false; } }
- 特記事項なし
using UnityEngine; using System.Collections; public class Player : MonoBehaviour { Spaceship spaceship; private Transform tran; private AudioSource audioSource; void Start() { spaceship = GetComponent<Spaceship>(); tran = GetComponent<Transform>(); audioSource = GetComponent<AudioSource> (); StartCoroutine("IE"); } IEnumerator IE() { while (true) { spaceship.Shot(tran); audioSource.Play (); yield return new WaitForSeconds(spaceship.shotDelay); } } void Update () { float x = Input.GetAxisRaw("Horizontal"); float y = Input.GetAxisRaw("Vertical"); Vector2 direction = new Vector2(x, y).normalized; Move(direction); } void Move(Vector2 direction) { Vector2 min = Camera.main.ViewportToWorldPoint (new Vector2 (0, 0)); Vector2 max = Camera.main.ViewportToWorldPoint (new Vector2 (1, 1)); Vector2 pos = transform.position; pos += direction * spaceship.speed * Time.deltaTime; pos.x = Mathf.Clamp (pos.x, min.x, max.x); pos.y = Mathf.Clamp (pos.y, min.y, max.y); transform.position = pos; } void OnTriggerEnter2D(Collider2D c) { string layerName = LayerMask.LayerToName(c.gameObject.layer); if (layerName == "Bullet(Enemy)") { Destroy (c.gameObject); } if (layerName == "Bullet(Enemy)" || layerName == "Enemy") { FindObjectOfType<Manager> ().GameOver (); //追加箇所 spaceship.Explosion (); Destroy (gameObject); } } }
- 特記事項なし
using UnityEngine; using System.Collections; public class Emitter : MonoBehaviour { public GameObject[] waves; private int currentWave; private Manager manager; void Start () { manager = FindObjectOfType<Manager> (); StartCoroutine ("IE"); } IEnumerator IE() { while (true) { while (manager.IsPlaying () == false) { yield return new WaitForEndOfFrame (); } GameObject g = (GameObject)Instantiate (waves [currentWave], transform.position, Quaternion.identity); g.transform.parent = transform; while (g.transform.childCount != 0) { yield return new WaitForEndOfFrame (); } Destroy (g); if (waves.Length <= ++currentWave) { currentWave = 0; } } } }
